OpenAir™ GCA Series Spring Return 160 lb-in Electronic Damper Actuator Technical Instructions

Document No. 155-173P25

December 11, 2014

Siemens Industry, Inc. Page 13

Flip the actuator to select either clockwise or counterclockwise fail-safe rotation of the damper

shaft. Follow Steps 1, 2, and 3 of Table 3 to determine the correct actuator mounting orientation.

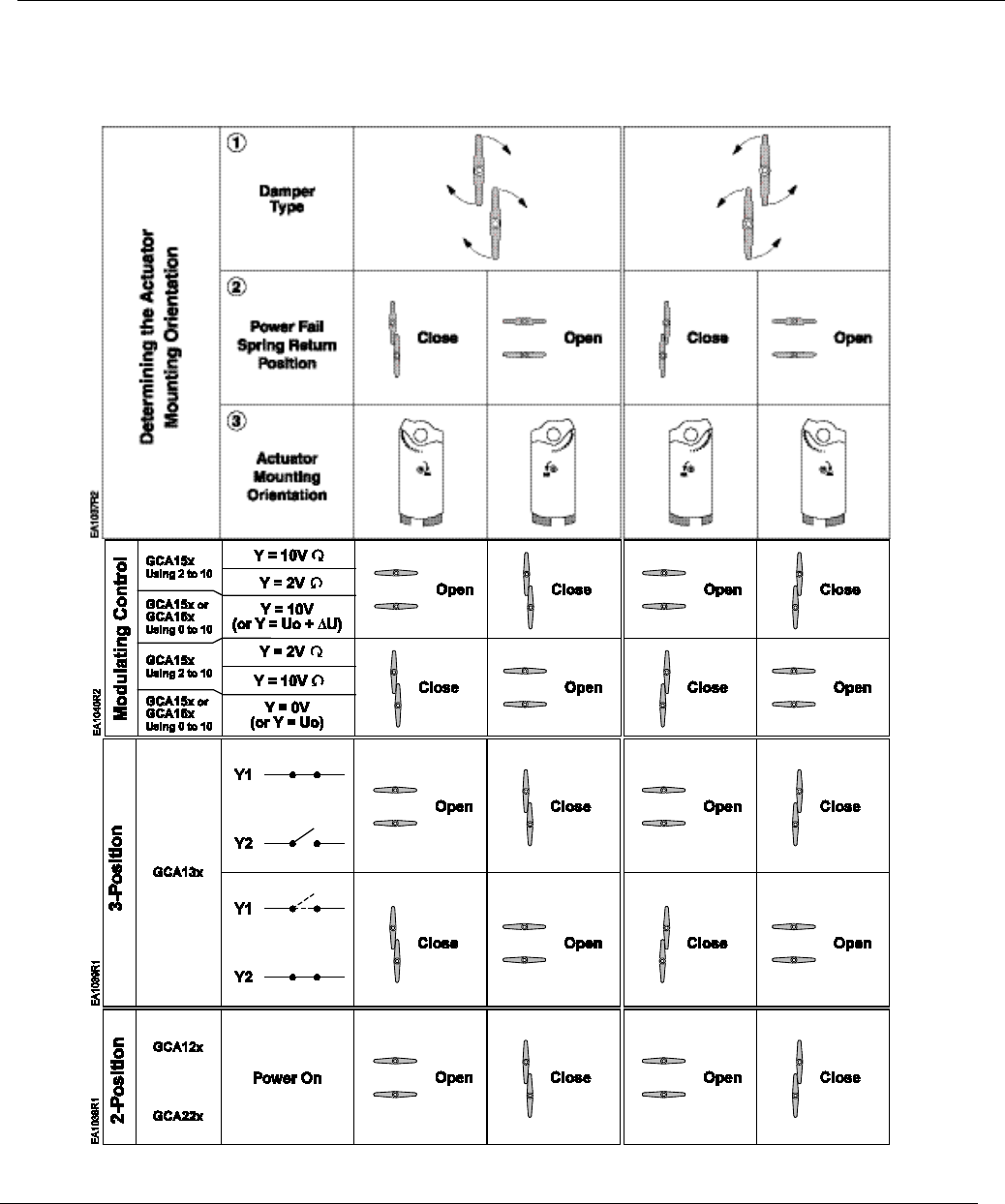

Table 3. Actuator Mounting Orientation and Damper Control.
